Stainless Steel (SS)
Stainless Steel (SS) wire rope is a type of mechanical cable constructed by twisting multiple individual stainless steel wires together to form strands, which are then laid helically around a central core. This multi-strand construction results in a flexible yet strong rope, which is essential for various lifting, rigging, and tensioning applications.
Key Material and Properties
The primary advantage of SS wire rope comes from its material composition, particularly the presence of chromium, which creates a thin, passive oxide layer on the surface.
Material Grades: The most common stainless steel grades used are:
SS 304: Offers good corrosion resistance and high strength. It is the most versatile austenitic stainless steel.
SS 316 (Marine Grade): Contains Molybdenum, which provides superior resistance to corrosion, particularly pitting corrosion in harsh environments like saltwater and chemical exposure. It is often preferred for marine and coastal applications.
- - Superior Corrosion Resistance: Highly resistant to rust, oxidation, and chemical corrosion, especially the 316 grade.
- - High Tensile Strength: Capable of withstanding significant load-bearing stress.
- - Temperature Resistance: Maintains its strength and structure in both high and low-temperature environments.
- - Aesthetic Appeal: The clean, modern, and lustrous finish makes it popular for architectural and decorative uses

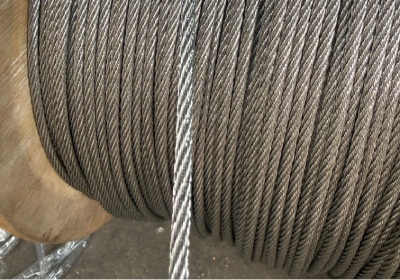

SS 304

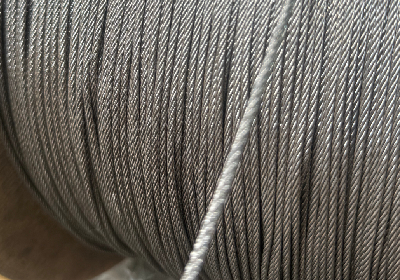

SS 316 (Marine Grade)
| Feature | Stainless Steel 304 | Stainless Steel 316 |
|---|---|---|
| Key Composition Difference | Contains 18% Chromium and 8% Nickel (known as 18/8). | Contains Molybdenum (approx 2–3%) in addition to Chromium and Nickel. |
| Corrosion Resistance | Good (Standard resistance to oxidation and rust in mild environments). | Excellent (Superior resistance to chlorides, salt spray, and pitting corrosion). |
| Marine/Coastal Suitability | Limited. Susceptible to pitting corrosion and “tea staining” when exposed to high-chloride or salty environments over time. | Ideal. The molybdenum specifically prevents corrosion from chlorides. |
| Strength | Generally slightly higher tensile strength than 316. | Generally slightly lower tensile strength than 304, but very close. |
| Cost | Lower (More cost-effective). | Higher (Due to the addition of Molybdenum). |
| Best For | Indoor architectural use, general rigging in dry or mild outdoor environments, machinery support. | Marine rigging, coastal balustrades, chemical plants, submerged applications, swimming pool areas. |
